EASTLAND Glass Thermal Insulation Coating is a water-based eco-friendly transparent thermal insulation coating centered on rare earth rare gold nano functional materials, specially developed for glass substrates. Integrated with advanced nano optical heat insulation and infrared blocking technologies, it overcomes the drawbacks of traditional window films and tinted glass, ranking as a new-generation energy-saving material for green buildings.

Formulated with eco-friendly water-based resin and free of harmful additives, the product can be directly applied to tempered glass, insulated glass, ordinary flat glass and curved glass. An ultra-thin, highly transparent and compact protective film will form after curing. It effectively blocks solar infrared thermal radiation and ultraviolet rays without affecting daylighting or building appearance, delivering dual effects of heat insulation and cooling in summer as well as heat preservation in winter. The coating also features excellent wear resistance, anti-aging performance, self-cleaning capability and strong adhesion. Featuring simple construction and low renovation cost, it is an ideal choice for energy-saving renovation of architectural glass and thermal optimization of commercial daylighting systems.

Product Performance

1. Efficient thermal insulation & temperature control, energy saving and consumption reduction.

It precisely blocks infrared heat sources of sunlight, greatly obstructs outdoor heat penetration through glass and effectively lowers indoor temperature. It remarkably relieves indoor stuffiness in summer and cuts down air conditioner operation frequency. In winter, it retains indoor heat and reduces heat loss, cutting overall building HVAC energy consumption by over 30%, well meeting long-term energy conservation demands.

2. High clarity without light loss

Unlike dark thermal insulation coatings and light-blocking materials, this product boasts outstanding light transmittance. The coated glass remains transparent, colorless, haze-free and non-yellowing, posing no impact on indoor natural lighting and architectural aesthetics. It suits office buildings, residences and high-end commercial buildings.

3. Full-spectrum UV blocking for asset protection

It delivers powerful ultraviolet shielding performance, blocking most solar UV rays. It effectively prevents fading, aging, cracking and deterioration of indoor furniture, curtains, wooden floors and office equipment, and extends the service life of interior furnishings and facilities.

4. Superior weather resistance and stable long-term performance

The cured coating features high hardness and strong adhesion, firmly bonded to glass substrates without peeling, falling off, cracking or chalking. It resists UV aging, rain erosion and extreme temperature differences, maintaining steady insulation protection performance for long outdoor service life.

5. Eco-friendly, safe and pollution-free

Adopting pure water-based formula diluted with deionized water, it contains no formaldehyde, benzene, heavy metals or toxic volatile substances. No peculiar odor occurs during construction and no harmful substances are released after curing. Complying with national green building material standards, it can be safely applied indoors and enclosed spaces.

6. Self-cleaning property for easy maintenance

The compact and smooth coating surface presents excellent hydrophobic and dust-proof properties, resisting adhesion of dust, oil stains and water marks. Natural rain flushing realizes automatic cleaning, greatly cutting subsequent glass maintenance and labor costs.

7. Flexible construction and wide compatibility

No glass removal or large-scale mechanical equipment is required for on-site construction. It is applicable to flat, curved and special-shaped glass, and available for renovation of both new and old glass.

Technical Parameters

Two-component liquid to be mixed before use, free of impurities and sediment. Cured appearance: highly transparent, haze-free and smooth surface. Product system: water-based environmental friendly system. Water resistance: no whitening or peeling after prolonged water immersion.

Application Scenarios

1. Civil Buildings

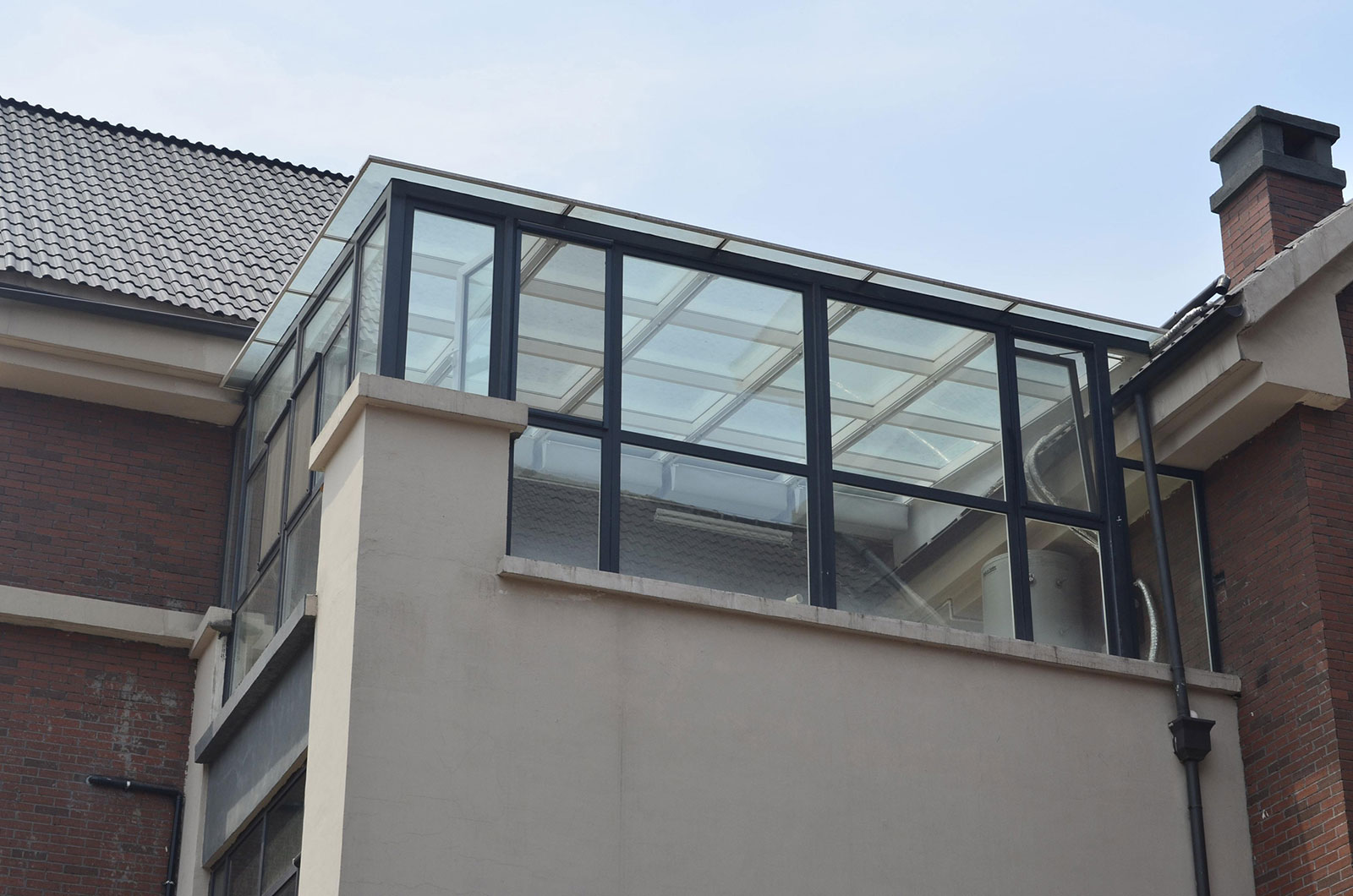

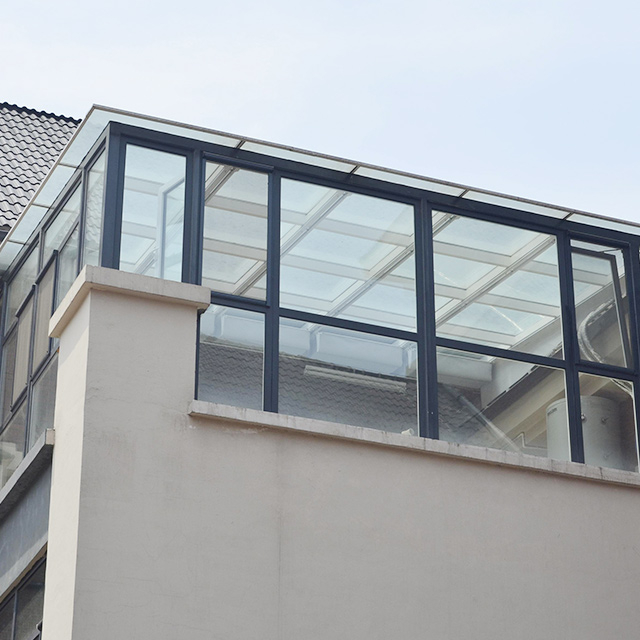

Door and window glass of high-rise residences, balcony floor-to-ceiling windows, sunroom glass, villa daylighting roofs and household glass partitions. Effectively solve problems of intense solar exposure, indoor stuffiness and furniture fading at home.

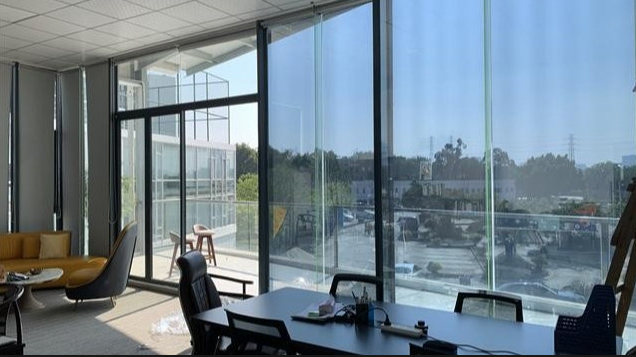

2. Commercial & Office Scenarios

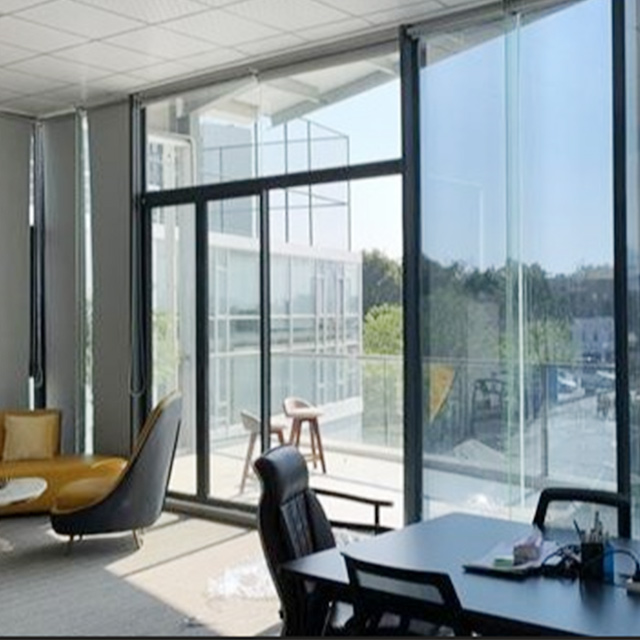

Glass curtain walls, doors and windows of office buildings, shopping mall display windows, hotel floor-to-ceiling windows and meeting room glass partitions. It balances architectural aesthetics, indoor daylighting, energy saving and cooling, meeting high-end commercial decoration standards.

3. Industrial Factory Scenarios

Daylighting glass of steel structure workshops, workshop skylights, warehouse glass doors and windows, and partition glass in industrial parks. It effectively relieves high temperature and stuffiness in workshops and cuts cooling energy consumption.

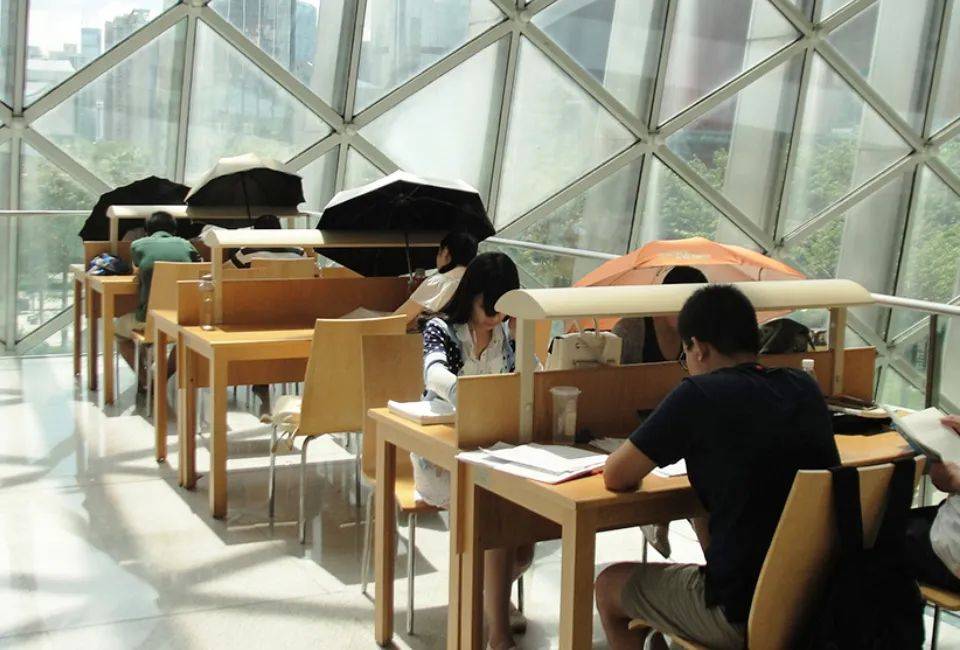

4. Public Facilities Scenarios

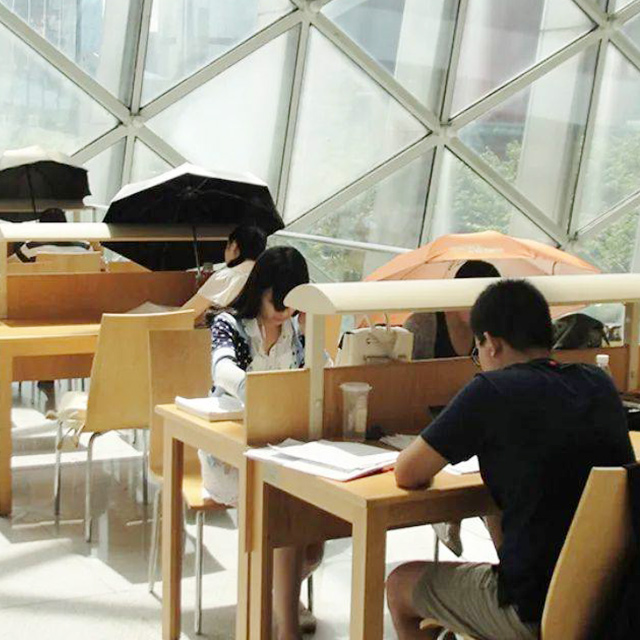

Energy-saving renovation for glass of teaching buildings, hospital windows, stadium skylights, bus shelter glass, exhibition halls and other public buildings.

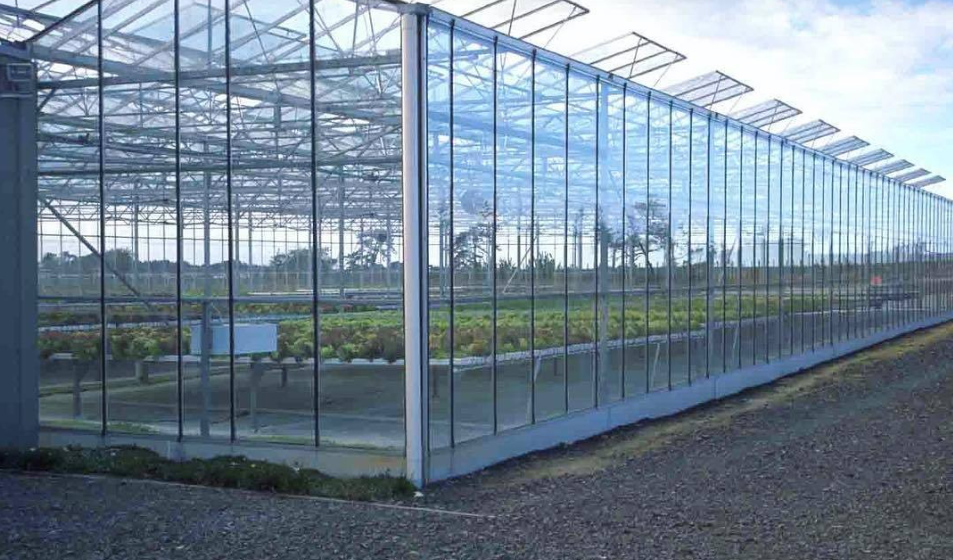

5. Special Scenarios

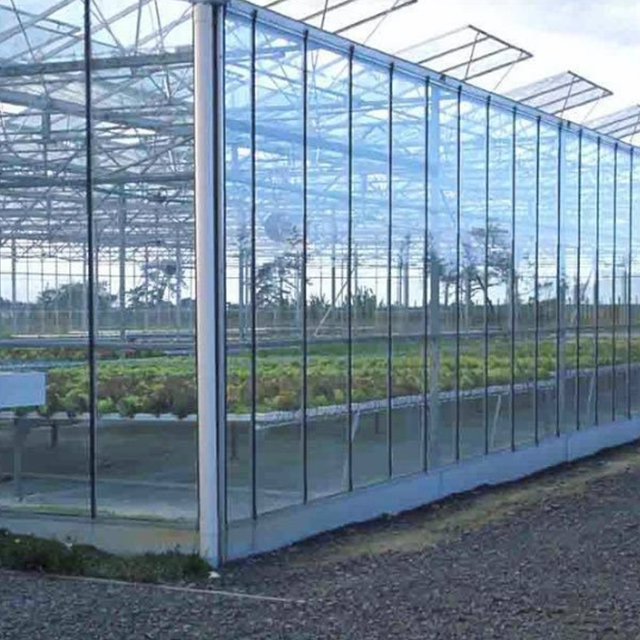

Thermal insulation renovation for greenhouse glass, elevator car glass, caravan and sightseeing vehicle glass, as well as all kinds of special-shaped curved glass.

Construction Process

Step 1: Base Surface Pretreatment (Critical Step)

1. Thoroughly remove dust, oil stains, limescale, glue marks, rust, aged dirt and other contaminants from the glass surface.

2. Wipe repeatedly with anhydrous alcohol and lint-free cloth to ensure the surface is clean, dry, free of water stains and grease.

3. Leave to air dry after cleaning. Start construction only when the base surface is completely clean and dust-free, avoiding impurities impairing adhesion and light transmittance.

Step 2: Coating Mixing and Preparation

The product is supplied as pre-proportioned two-component materials for mixed use. Stir thoroughly for 3 to 5 minutes after opening to achieve uniform consistency without delamination or sedimentation. Construction can proceed immediately once well mixed.

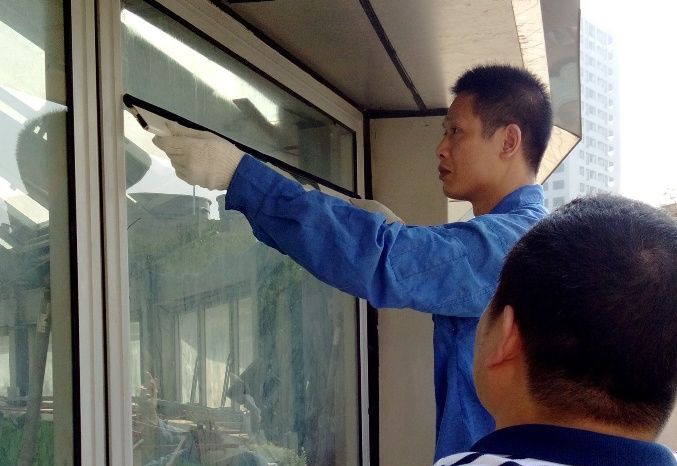

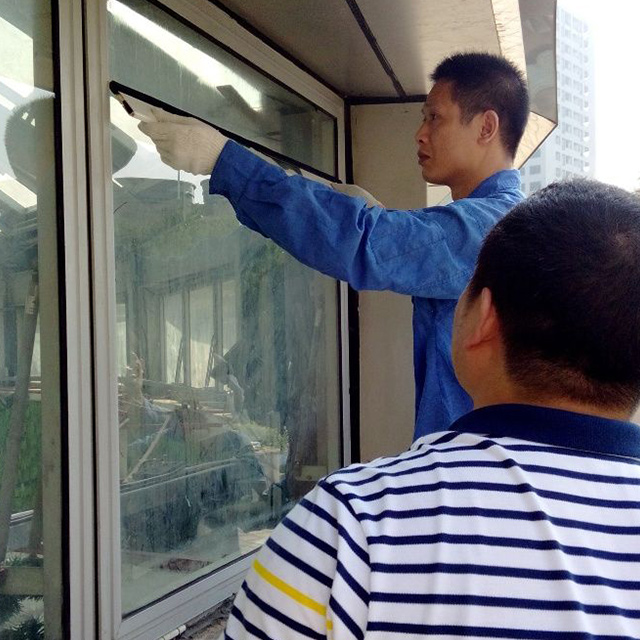

Step 3: Precise Coating Construction

1. Construction environment: Operate preferably in well-ventilated and dry surroundings at 5℃-35℃ with humidity no higher than 60%. Avoid outdoor work on rainy, windy or scorching hot days.

2. Tools: Special nano sponge applicator and high-quality soft roller; stiff brushes are prohibited.

3. Application method: Adopt standard horizontal coating and vertical finishing technique with thin multi-coat application, normally two coats total. Fully soak the applicator or roller before use. Apply the first thin base coat, then apply the second coat after surface drying completely. Ensure uniform coating thickness free of sagging, bubbles and brush marks.

Step 4: Natural Drying and Curing

1. Under ventilated ambient temperature, surface drying takes around 30 minutes and initial drying finishes in 2 hours.

2. A 24-hour standing period is required for full curing and stable performance.

3. Do not touch, wipe, wet or expose the coated glass to direct sunlight during curing to prevent coating damage, whitening and unevenness.

Step 5: Final Inspection and Maintenance

Qualified coating features uniform transparency without particles, scratches or sagging defects. Thermal insulation, light transmittance and UV resistance shall meet standards after curing. Avoid high-pressure water washing within 48 hours and rain exposure within 24 hours. Maintain naturally in regular environment; refrain from using strong acidic or alkaline detergents.
