Eastland High-quality 50mm 75mm Thin AAC Wall Panel

Warranty: More than 15 years
Raw Materials: Silicon Sand, Cement, Lime, Gypsum
Dry Density: 400kg/m3-600kg/m3
Usage: Exterior Wall, Interior Wall, Floor, Roof, Fence, Cladding, Noise Wall
Standard: AS/NZS, ASTM, EN, GB
Thickness:
Please select
Width:
Please select
Length:
Availability:
Quantity:
  • 50mm,75mm
  • EASTLAND
  • AAC-01

Description of Eastland Thin AAC panel

Eastland Thin AAC/ALC Wall Panel


AAC Panel is the shortened form of Autoclaved Aerated Concrete Panel. The main materials of AAC panel which is also called ALC panel, are silicon sand, cement, lime etc. Reinforced with anti-stain processed steel bar, the concrete panel with many air holes was formed after high-temperature, high-pressure protection with steam. It’s a new type constructional material with excellent functions. There are patents of Germany and Sweden and Japan included in the production equipments. The complete production process, from mixing raw material, anti-stain processing of steel bar, organizing into frame, pouring paste on, cutting, steaming and pressing to surface processing, is calculated accurately with computer program and has a rigid QC control.

EASTLAND thin panel can be used as exterior wall, interior wall, floor, roof, fence, cladding, noise wall.


Specification

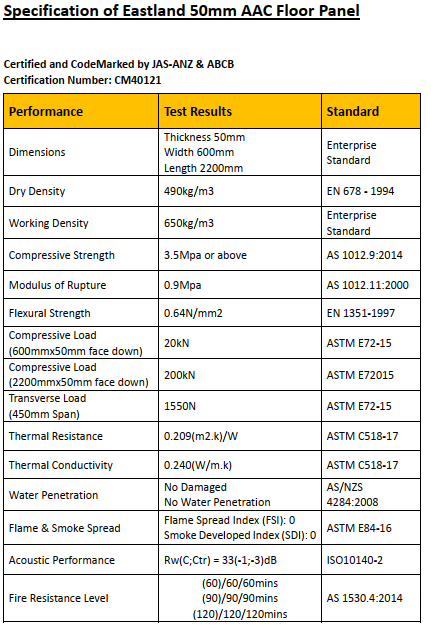

Eastland 50mm AAC Floor panel



Eastland 50mm AAC Wall panel

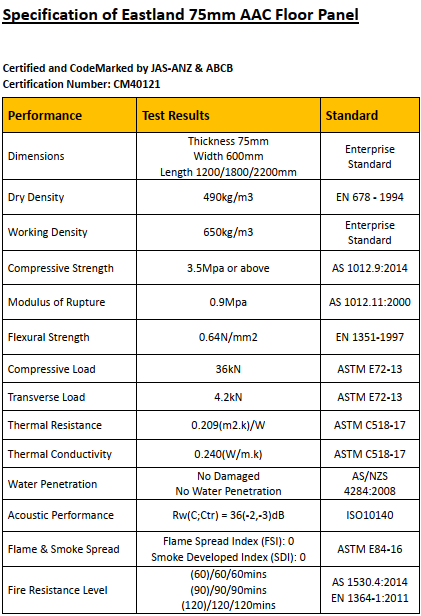

Eastland 75mm AAC Floor panel

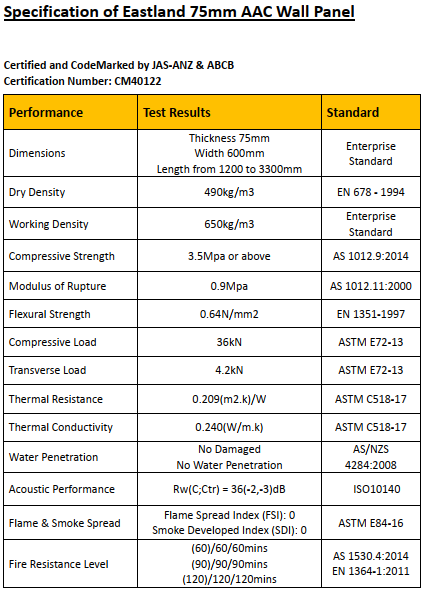

Eastland 75mm AAC Wall panel


Application

AAC panel/ Australia villa

Villa

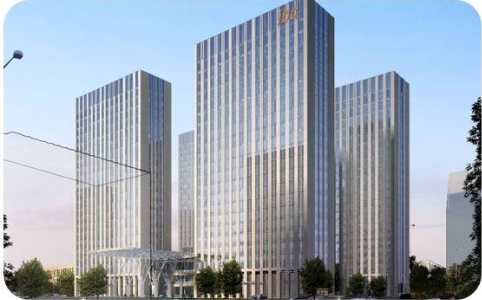

AAC panel/ CBD

CBD

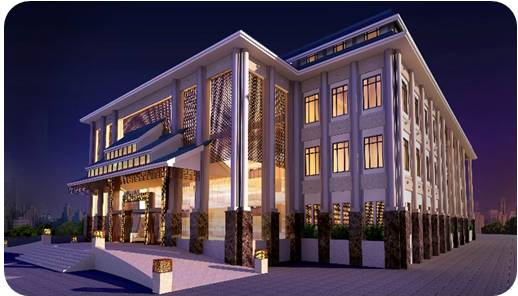

AAC panel/ hotel

Hotel


AAC panel/ factory

Factory





Production Process of Eastland AAC Panels

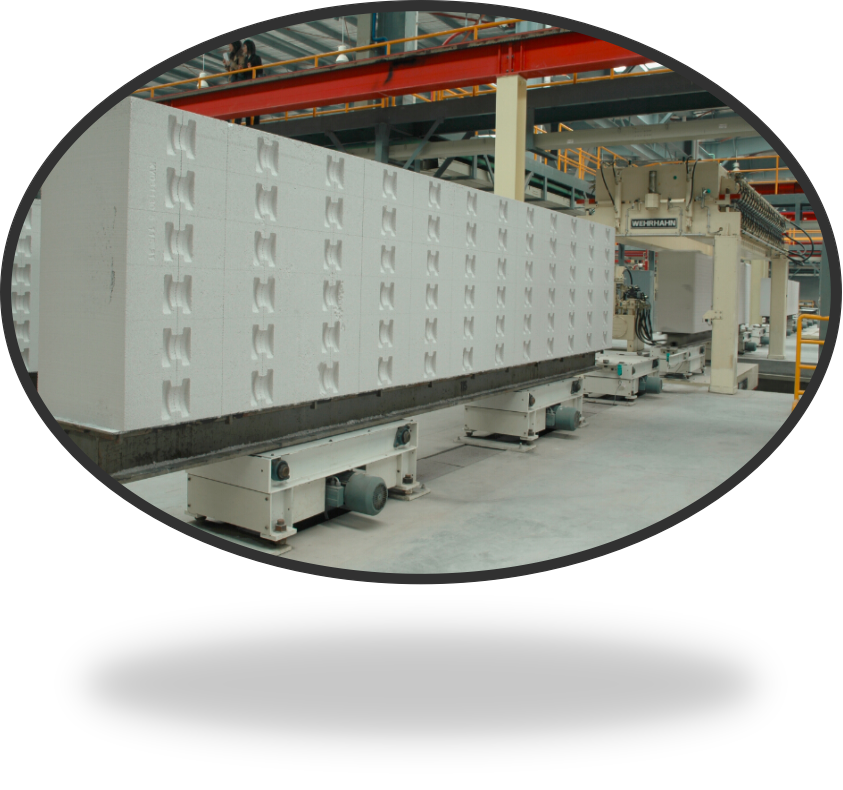

Eastland cladding/ The Cutting Line

The Cutting Line

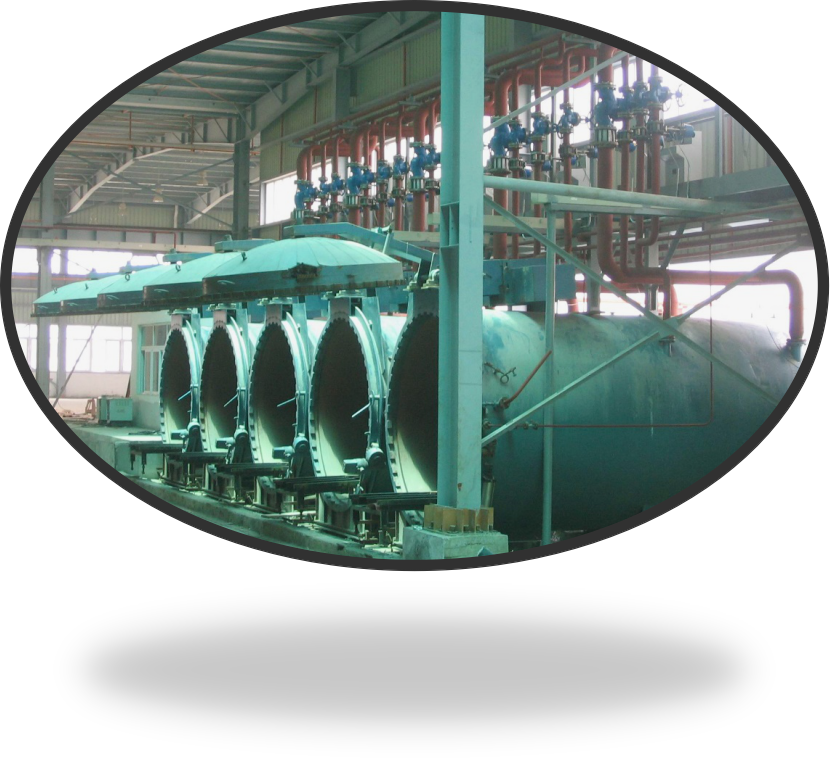

Eastland cladding/ Autoclaves

Autoclaves


Eastland cladding/ Testing

Testing

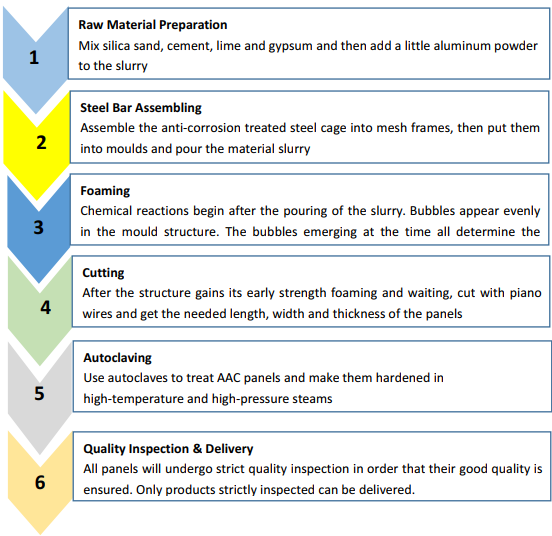

Production Process of AAC panel

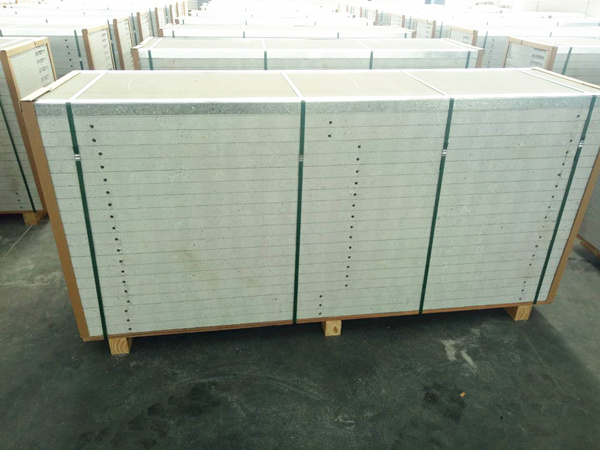

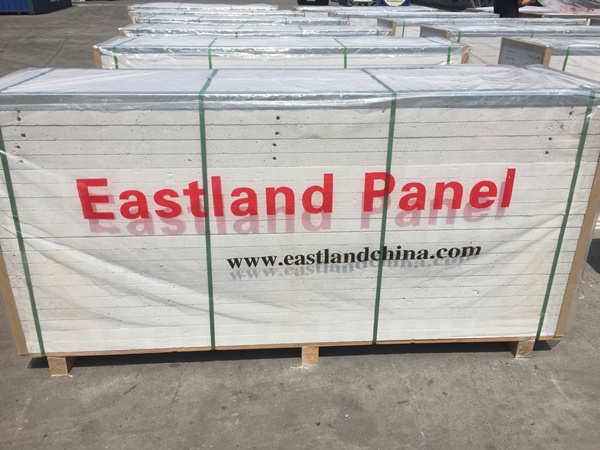

Packing

Eastland cladding/ Packing



Eastland Cladding/ Packing



Eastland cladding/ Packing







Feature of Eastland AAC/ALC Wall Panel


AAC panel/ Lightness

Lightness

The dry specific gravity of the AAC panel is only 0.5 because it is one kind of foamed concrete. As the above rate is 1/5 of common concrete and 1/3 of hollow block, it lightens the self-weight of building, reduces the cost of base and frame, cuts down the difficulty in process of soft groundsill, and increases the construction quality.


AAC PANEL/ Sound Insulation

Sound Insulation

A lot of micro and small air holes that are inside the AAC panel cause multi-function of sound insulation and assimilation. The high precision of panel can create a fine air keeping space to supply a silent and comfortable living environment.


AAC PANEL/ Heat Insulation

Heat Insulation

A lot of micro and small air holes that are inside of the AAC panel form a static air layer in the material and make the rate of heat transmission of only 0.11W/m.K. The function of heat insulation and preservation of the AAC panel is 10 time of common concrete. The function of heat preservation of AAC panel at 125mm thickness is same as 370mm wall of soil-block.



AAC PANEL/ Anti-Vibration

Anti-Vibration

It is world-wide outstanding known of the anti-vibration ability of AAC panel. Only the constructions built with AAC panel are broken lightly at heavy earthquakes at Osaka/Kobe.
The tests in the laboratories of Tongji University and Southeast University in China show that the AAC panel has excellent function of anti-vibration. The light self-weight of AAC is the main cause, as it allows bigger angular distortion between layers and the allowed changing angle is 1/150.


aac panel/ Fireproofing

Fireproofing

The AAC panel can stand against fire as the low rate of heat transmission. The self of AAC belongs to abio-compound and is not  burnable. It doesn’t produce nocuousness gas. At Tianjin National Fixed Anti-fire System Center, it passed the test for fire bearing   of 240 min limit.



AAC PANEL/ Load-bearing

Load-bearing

The AAC panel can bear wind load, snow load and dynamic load.
 There are following types of the AAC panels:
                          Outside wall panel
                           Inner wall panel
                           Roof panel
                           Floor panel
                                             The steel ribs inside of AAC panel are arranged by CAD according to loading situation, that the capacity of loading is obtained.
                                             In general, the loads of building are:
                                                                        Constant load (incl. self weight and floors)
                                                                        Living load
                                                                        Snow load

                                                                        Wind load
                                                                        The effect of earthquake


AAC PANEL/ NO Radioactivity

NO Radioactivity

Test by authority department, the radioactive rate is 12rµ/h, further less than the stand of WHO, is a no radioactive green environmental construction material.
